Infrared therapy lamp - Hong Wai Xian Deng
Use reserved for professionals only
1 Lamp - Essential Model
1 Lamp - Advanced model
1 Lamp - Desk Model
Description
The main function of infrared therapy device is to rely on the thermal effect of infrared rays to promote blood circulation in the irradiated area by heating, so that the muscles can be relaxed.
Specification: 8kg net weight. Output power 100W/150W Power Range ac.220V/50Hz Spectrum Range 0.6μm-2.5μm Arm Lifting Range 0-270° Pitch Angle 270° Rotor Angle 360° Package Measurement 670mm×320mm×255mm
Height: 150 cm (including the lamp and the base)
Modèle Essentiel (CN003)
| Specifications | Essential Model (CN003) |
|---|---|
| Power Adjustment | ✘ No (fixed power) |
| Power Supply | AC 220V / 50Hz |
| Spectral Range | 0.6 μm – 2.5 μm |
| Input Power | 150W |
| Output Power | 100W |
| Horizontal Arm Rotation | 0° to 150° |
| Vertical Arm Elevation | 0° to 270° |
| Head Tilt | 270° |
| Head Rotation | 360° |
| Timer | Mechanical |
| Head Diameter | 16.5 cm |
| Total Height | 112 cm + 35 cm (incl. lamp) |
| Package Dimensions | 670 × 320 × 255 mm |
| Net / Gross Weight | 8 kg / 9 kg |
Notes:
The CN003 model is recommended for simple use with constant power output.

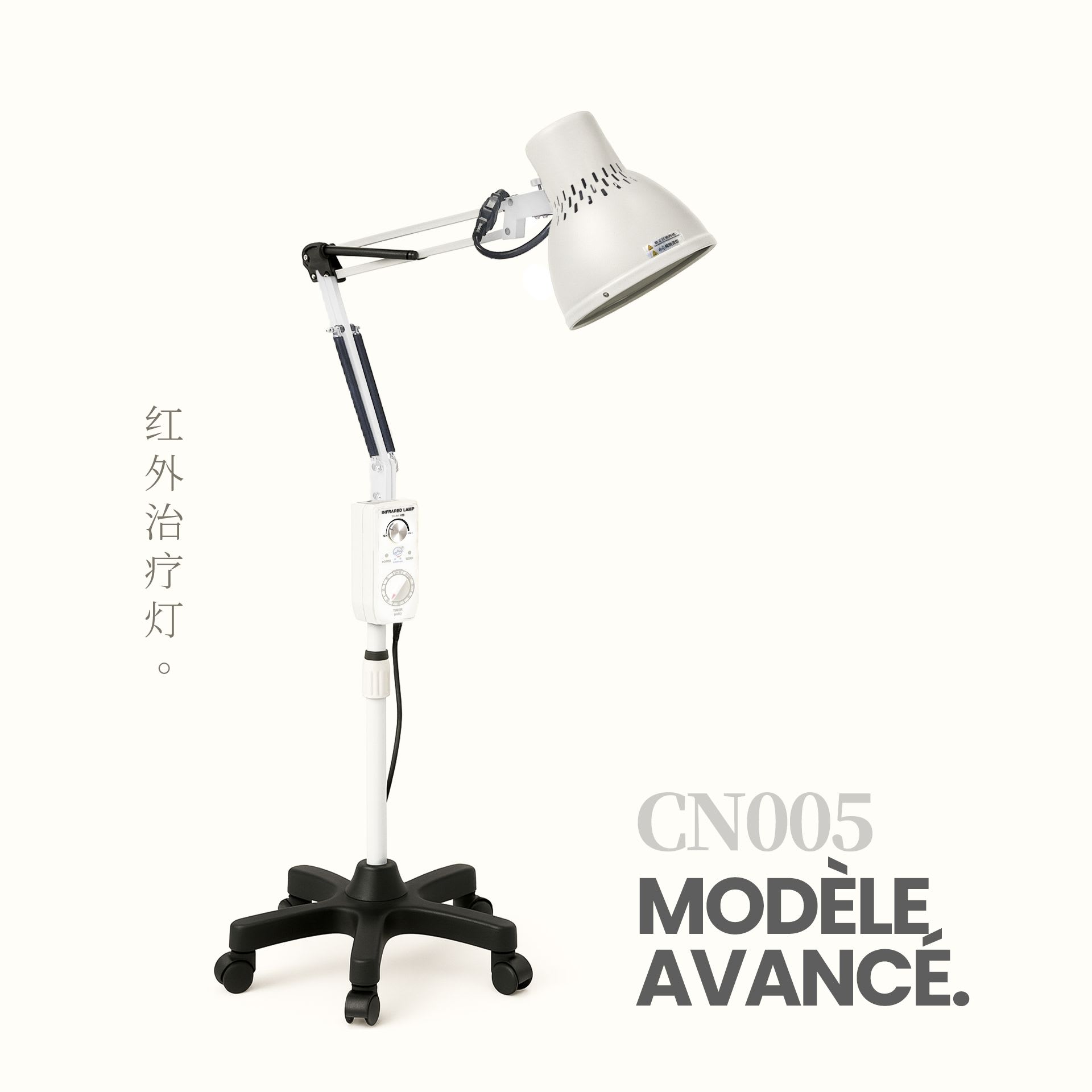

Modèle Avancé (CN005)
| Specifications | Advanced Model (CN005) |
|---|---|
| Power Adjustment | ✔ Yes (temperature adjustable) |
| Power Supply | AC 220V / 50Hz |
| Spectral Range | 0.6 μm – 2.5 μm |
| Input Power | 250W |
| Output Power | Adjustable: 105°C to 151°C |
| Horizontal Arm Rotation | 0° to 150° |
| Vertical Arm Elevation | 0° to 270° |
| Head Tilt | 270° |
| Head Rotation | 360° |
| Timer | Mechanical |
| Head Diameter | 20.3 cm |
| Total Height | 124–147 cm (adjustable) + 38 cm (incl. lamp) |
| Package Dimensions | 655 × 495 × 295 mm |
| Net / Gross Weight | 8 kg / 9 kg |
Notes:
The CN005 model provides more precise temperature control thanks to its adjustable voltage, making it ideal for advanced users or professionals. When the voltage is set to the minimum (about 60% of the rated voltage, approximately 130V), the bulb temperature is estimated to be around 105°C, and at 100% it reaches approximately 151°C.
Modèle Bureau (CN004)
| Specifications | Desktop Model (CN004) |
|---|---|
| Power Adjustment | ✘ No (fixed power) |
| Power Supply | AC 220V / 50Hz |
| Spectral Range | 0.6 μm – 2.5 μm |
| Input Power | 100W |
| Output Power | 90W |
| Horizontal Arm Rotation | 0° to 150° |
| Vertical Arm Elevation | 0° to 270° |
| Head Tilt | — |
| Head Rotation | 360° |
| Timer | Mechanical |
| Head Diameter | — |
| Total Height | — |
| Package Dimensions | 240 × 165 × 380 mm |
| Net / Gross Weight | 2.7 kg / 3.2 kg |
